1 / 297' working height · 661 lb platform capacity

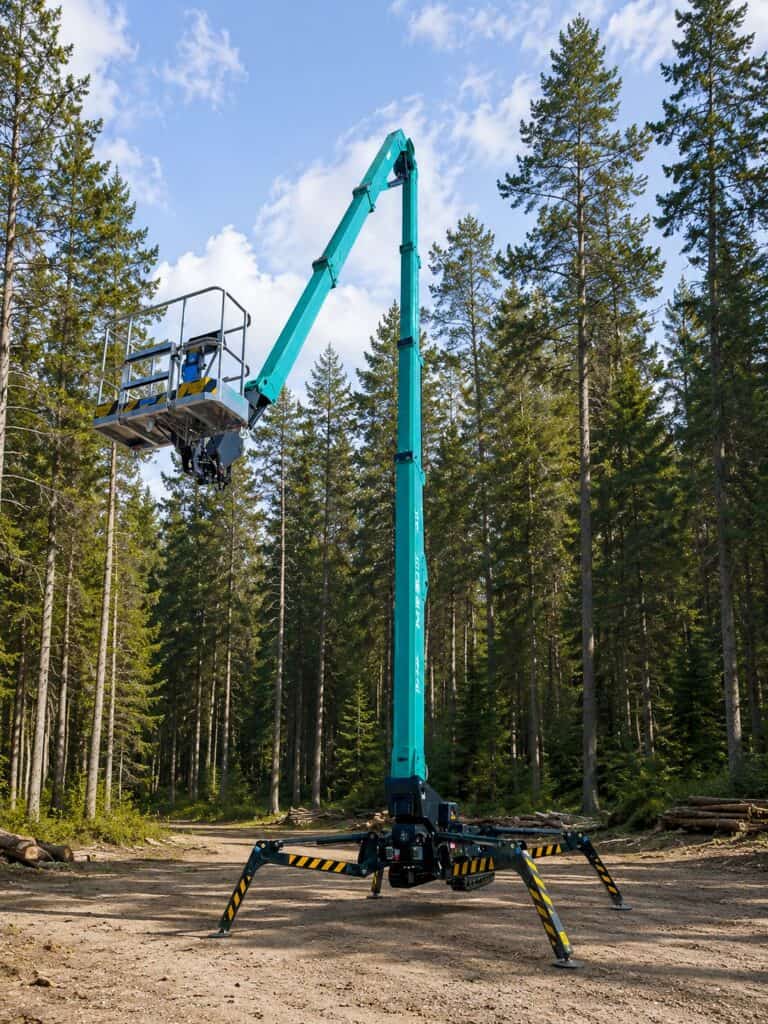

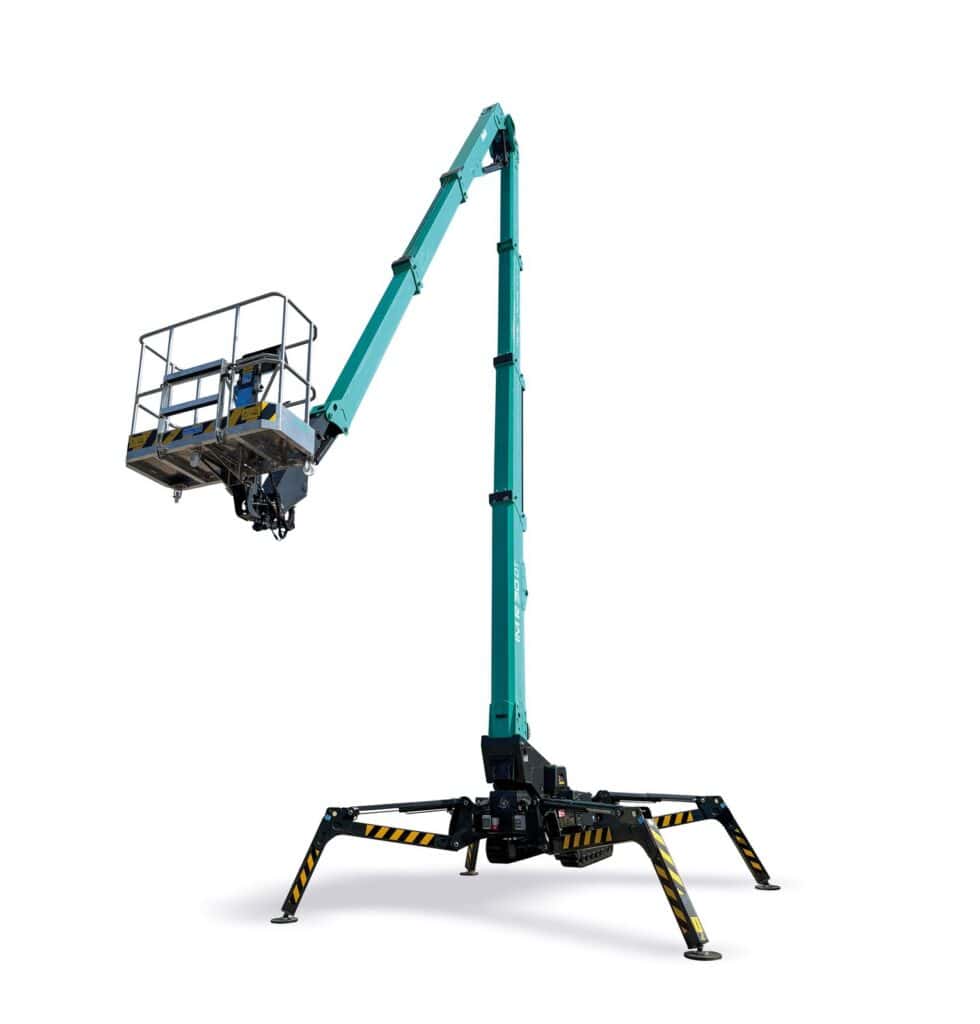

The IMER IM R 97 / 30 DT Pro delivers a 97 foot working height and 661 lb platform capacity from a machine that transports at 35" wide. Its double telescopic boom and unrestricted jib put the platform 51' 6" up and over an obstacle or 50' 10" out to the side, and 19' 8" of negative outreach lets crews work below grade from the same setup. Auto-leveling outriggers with a narrow footprint option set up fast where space is tight, and the Kubota diesel pairs with a 240 V electric motor for indoor work.
- Up to 50' 10" side outreach at 309 lb, 44' 11" at 507 lb and 41' at the full 661 lb capacity
- 51' 6" up-and-over clearance with the tower boom open; 19' 8" of negative outreach below grade
- Narrow 21' 4" x 10' 2" outrigger footprint option alongside the standard 16' 10" x 14' 9"
- 35" transport width on hydraulically adjustable tracks; 6' 7" stowed height; 11,012 lb total weight
- Kubota D902 diesel plus a 240 V / 10 hp electric motor for indoor work
- Enhanced wireless controller with 4.3” color screen
- Return-to-home button
- Two-man basket
- Foot pedal activation switch
- Auto-leveling outriggers
- Double traction speed
- Electric emergency pump
- 124° basket rotation
- 360° non-continuous turret rotation
- Adjustable track width
- Air & water hookups in the basket
- 120 V / 16 A outlet in the platform
- 240 V electric pump for machine use on 240 V wall power
Applications
The IM R 97 / 30 DT Pro is a spider lift for high-rise facade inspection and repair, glazing, large-format signage, industrial maintenance and arborist work on mature trees. With 19' 8" of negative outreach it also reaches below grade from bridges, loading docks and retaining walls, and the 35" chassis still fits through a double door for stadium, hangar and atrium work indoors. Available through IMER dealers across the US.
Specifications
US units · tap a section to expand| Specification | Diesel |
|---|---|
| Working height | 97' |
| Platform height | 91' |
| Max side outreach | 50' 10" @ 309 lbs. (tower boom closed) |
| Side outreach @ 661 lbs. | 38' 9" |
| Side outreach @ 507 lbs. | 42' 8" |
| Side outreach @ 309 lbs. | 48' 7" |
| Side outreach - tower boom closed | Tower closed: 41' 0" @ 661 lbs. / 44' 11" @ 507 lbs. / 50' 10" @ 309 lbs. |
| Up & Over | 51' 6" (tower boom open) |
| Up & Over - tower boom closed | 26' 7" |
| Negative outreach | 19' 8" |
| Max load capacity | 661 lbs. |
| Turret rotation | 360° (not continuous) |
| Basket rotation | 124° |
| Basket dimensions | 4' 11" x 2' 4" x 3' 7" |
| Outrigger footprint - standard | 16' 10" x 14' 9" |
| Outrigger footprint - narrow | 21' 4" x 10' 2" |
| Transport length (without basket) | 20' 3" (18' 1") |
| Transport width (w/ tracks extended) | 2' 11" (4' 7") |
| Stowed height (w/ outrigger pads) | 6' 7" |
| Total machine weight | 11,012 lbs. |
| Driving speed | 1.6 mph |
| Gradeability | 30% |
| Electric motor | 240 V / 10 hp |
| Diesel engine | Kubota D902 - 23 hp |

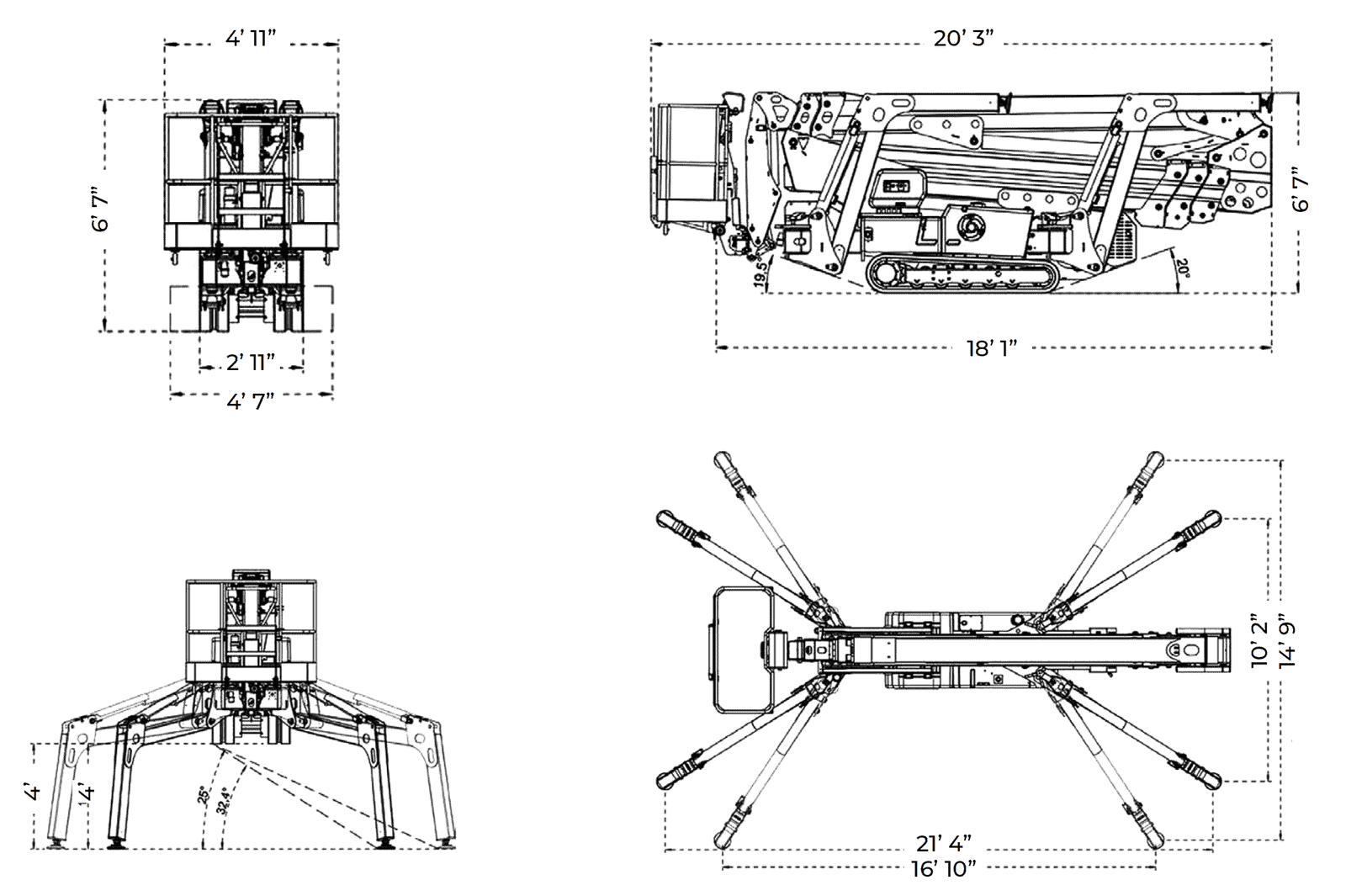

Dimensions

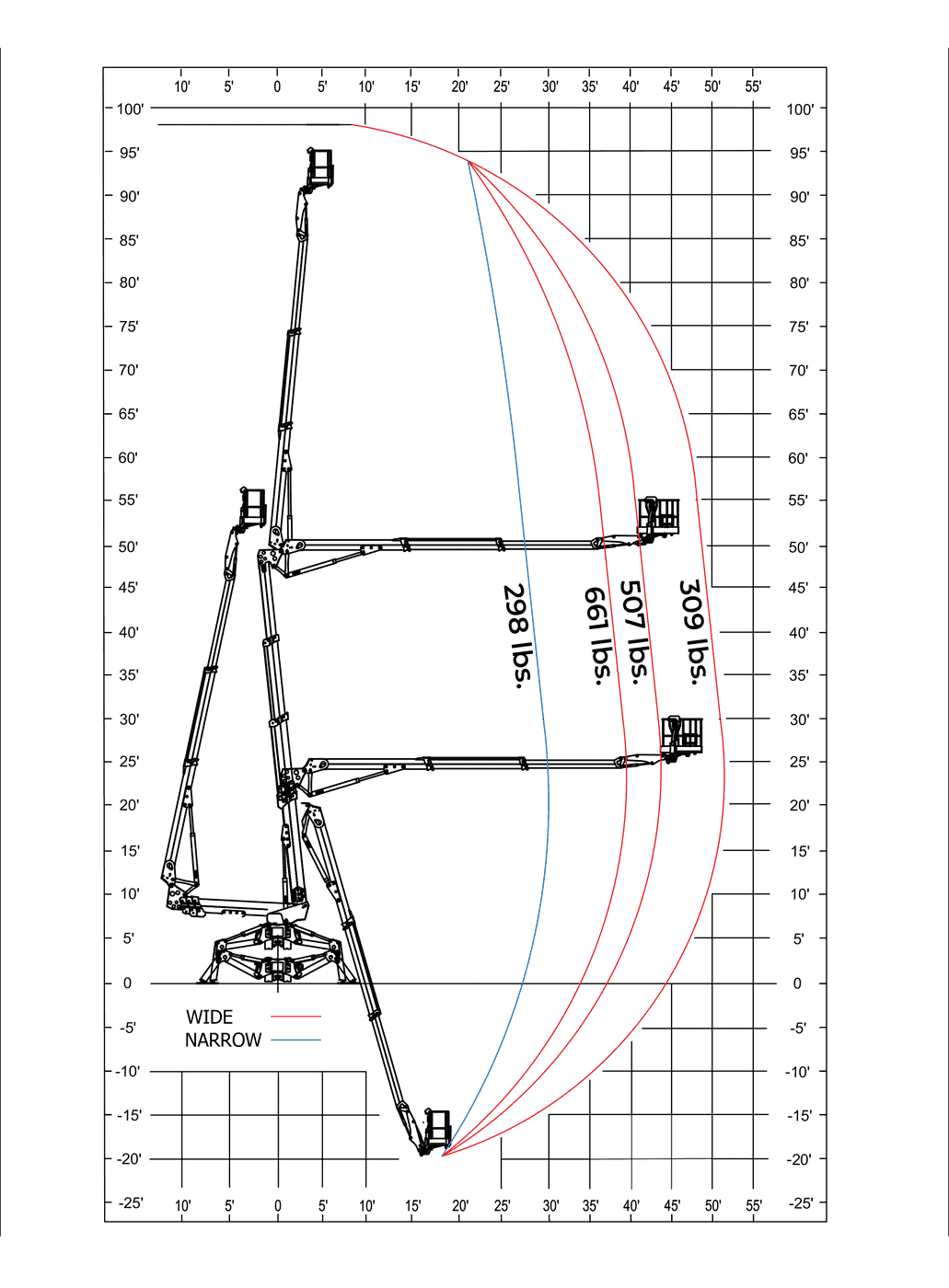

Click to enlargeReach Chart
Click to enlargeCompare Models
Side by side with the IM R 97 / 30 DT ProDownloads
Frequently Asked Questions
It needs a double door or an overhead door: the tracks retract to 2' 11" (35") and the stowed height is 6' 7". Transport length is 20' 3", or 18' 1" with the basket removed, and the machine weighs 11,012 lb.
661 lb, the highest capacity in the IMER spider lift line. Side outreach is 41' at 661 lb, 44' 11" at 507 lb and 50' 10" at 309 lb with the tower boom closed.
Yes. The Kubota D902 diesel is paired with a 240 V, 10 hp electric motor that runs the machine on building power, so it works in stadiums, hangars and atriums with no exhaust.
