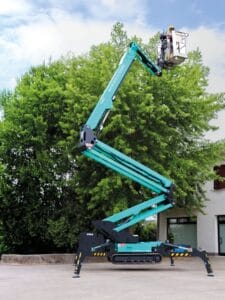

1 / 574' working height · 507 lb platform capacity

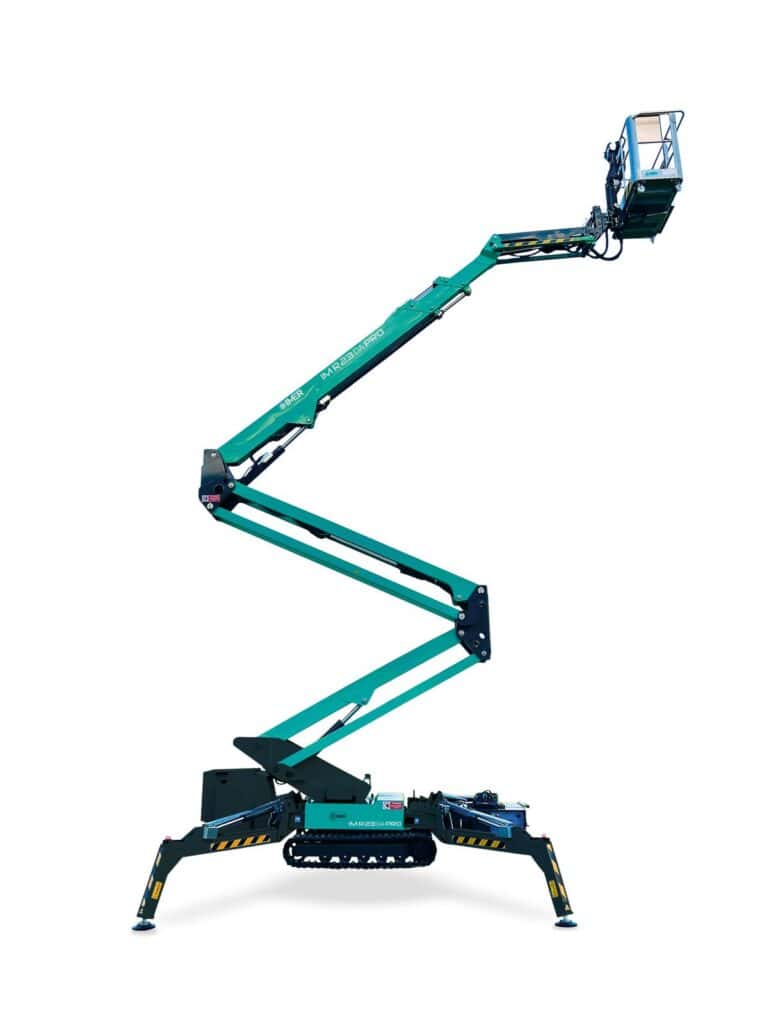

The IMER IM R 74 / 23 DA Pro takes the double articulated spider lift to a 74 foot working height with up to 39' 4" of side outreach and 29' 6" of up and over, on a tracked chassis that still transports at 39" wide. Variable stabilization lets the outriggers run narrow at 16' x 8' 10" where space is tight or spread to the full 12' 1" x 12' 10" footprint for maximum reach, and the active jib keeps the 507 lb platform working around obstacles without repositioning. Gas, diesel or lithium power covers indoor and outdoor jobsites with one machine.
- 39' 4" side outreach at 309 lb and 34' 9" at the full 507 lb capacity

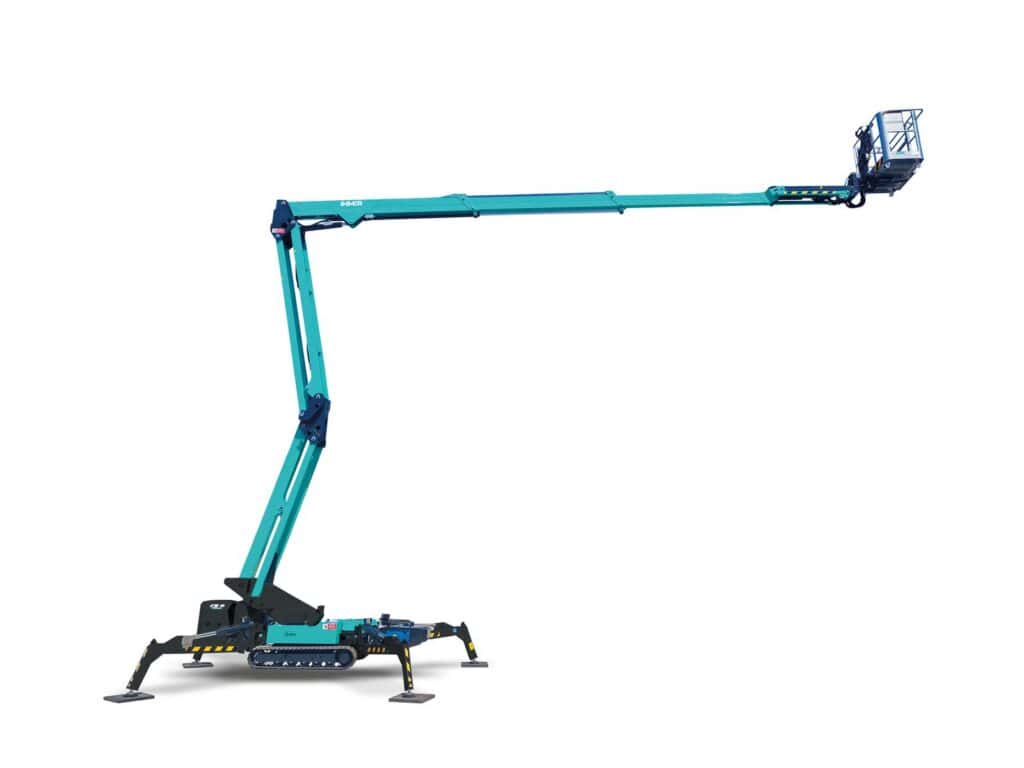

- 29' 6" up-and-over clearance from the double articulated boom and active jib
- Variable stabilization: the narrow 16' x 8' 10" outrigger footprint still delivers 23' 11" of outreach at 507 lb

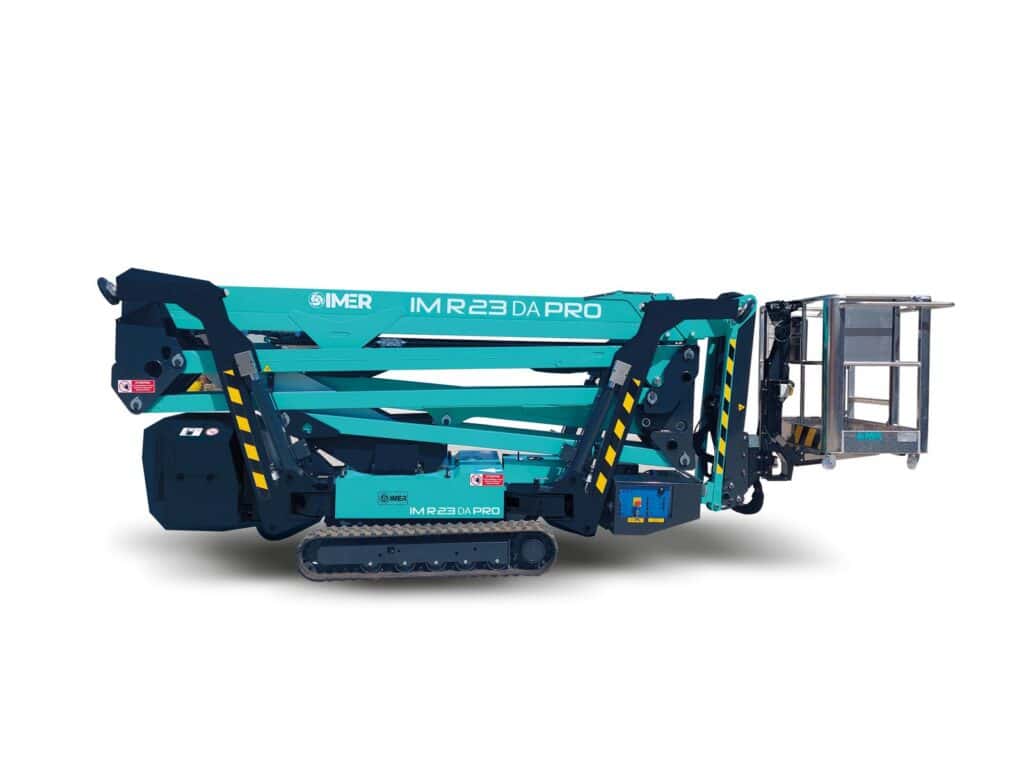

- 39" transport width on hydraulically adjustable tracks; 6' 6" stowed height
- Gas, diesel or lithium power, with a 120 V electric motor for indoor work on gas and diesel units
- Enhanced wireless controller with 4.3” color screen
- Return-to-home button
- Two-man basket
- Foot pedal activation switch
- Auto-leveling outriggers
- Double traction speed
- Electric emergency pump
- 124° basket rotation
- 360° non-continuous turret rotation
- Adjustable track width
- Air & water hookups in the basket
- 120 V / 16 A outlet in the platform
- 120 V electric pump for machine use on 120 V wall power
Applications

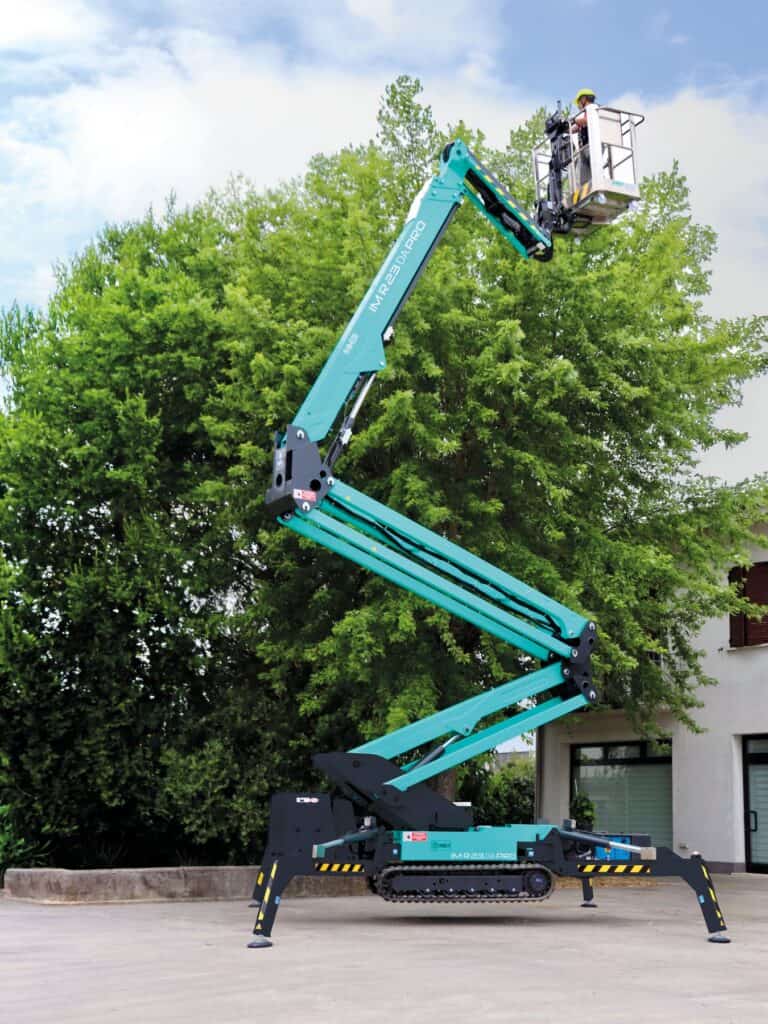

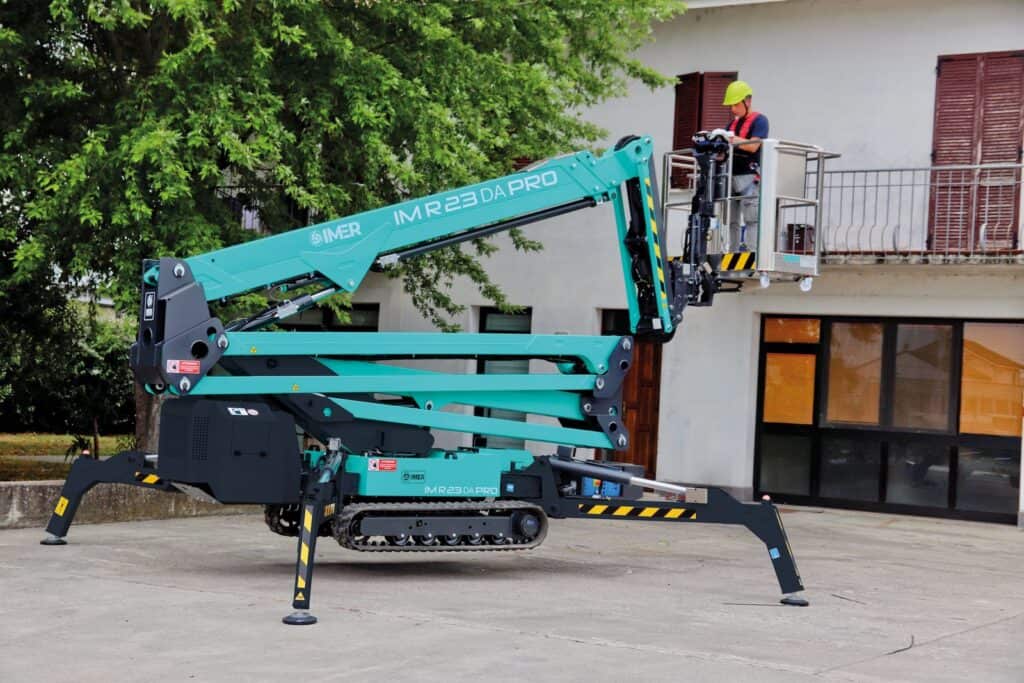

The IM R 74 / 23 DA Pro is a tracked spider lift for seven-story facade work, glazing, exterior painting and signage, and for spider lift tree work where crews need to reach over roofs, fences and landscaping. Variable stabilization lets it set up in alleys and between buildings, and the 39" chassis fits through double doors for atrium and hangar work indoors. Available through IMER dealers across the US.
Specifications
US units · tap a section to expand| Specification | Gas / Diesel | Lithium |
|---|---|---|
| Working height | 74' | |
| Platform height | 68' | |
| Max side outreach | 39' 4" / 309 lbs. | |
| Side outreach @ 507 lbs. | 34' 9" | |
| Side outreach @ 309 lbs. | 39' 4" | |
| Side outreach - narrow footprint | 23' 11" @ 507 lbs. / 28' 3" @ 309 lbs. | |
| Up & Over | 29' 6" | |
| Max load capacity | 507 lbs. | |
| Turret rotation | 360° (not continuous) | |
| Basket rotation | 124° | |
| Basket dimensions | 4' 7" x 2' 4" x 3' 7" | |
| Outrigger footprint - standard | 12' 1" x 12' 10" | |
| Outrigger footprint - narrow | 16' 0" x 8' 10" | |
| Transport length (without basket) | 18' 9" (16' 3") | |
| Transport width (w/ tracks extended) | 3' 3" (4' 2") | |
| Stowed height (w/ outrigger pads) | 6' 6" | |
| Total machine weight | Gas 6,592 lbs. / Diesel 6,614 lbs. | 6,614 lbs. |
| Driving speed | 1.7 mph | 0.9 mph |
| Gradeability | 32% | |
| Electric motor | 120 V 1.5 hp | 48V 13 hp AC low voltage |
| Gas engine | Honda iGX800 - 25 hp | — |
| Diesel engine | Kubota D902 - 23 hp | — |
| Lithium batteries | — | 48V / 210 Ah |
| Lithium battery charger | — | 48V / 50 A |

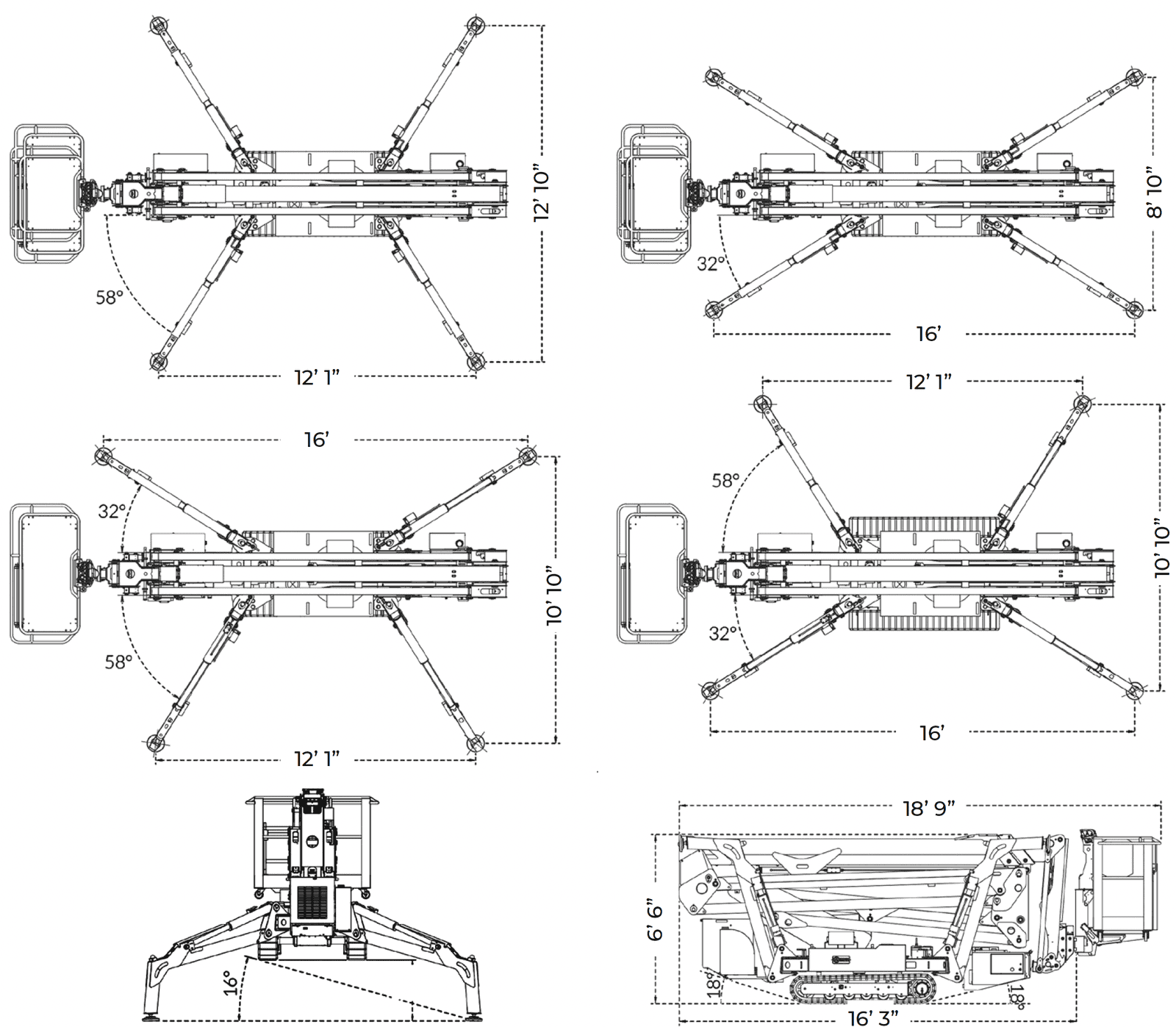

Dimensions

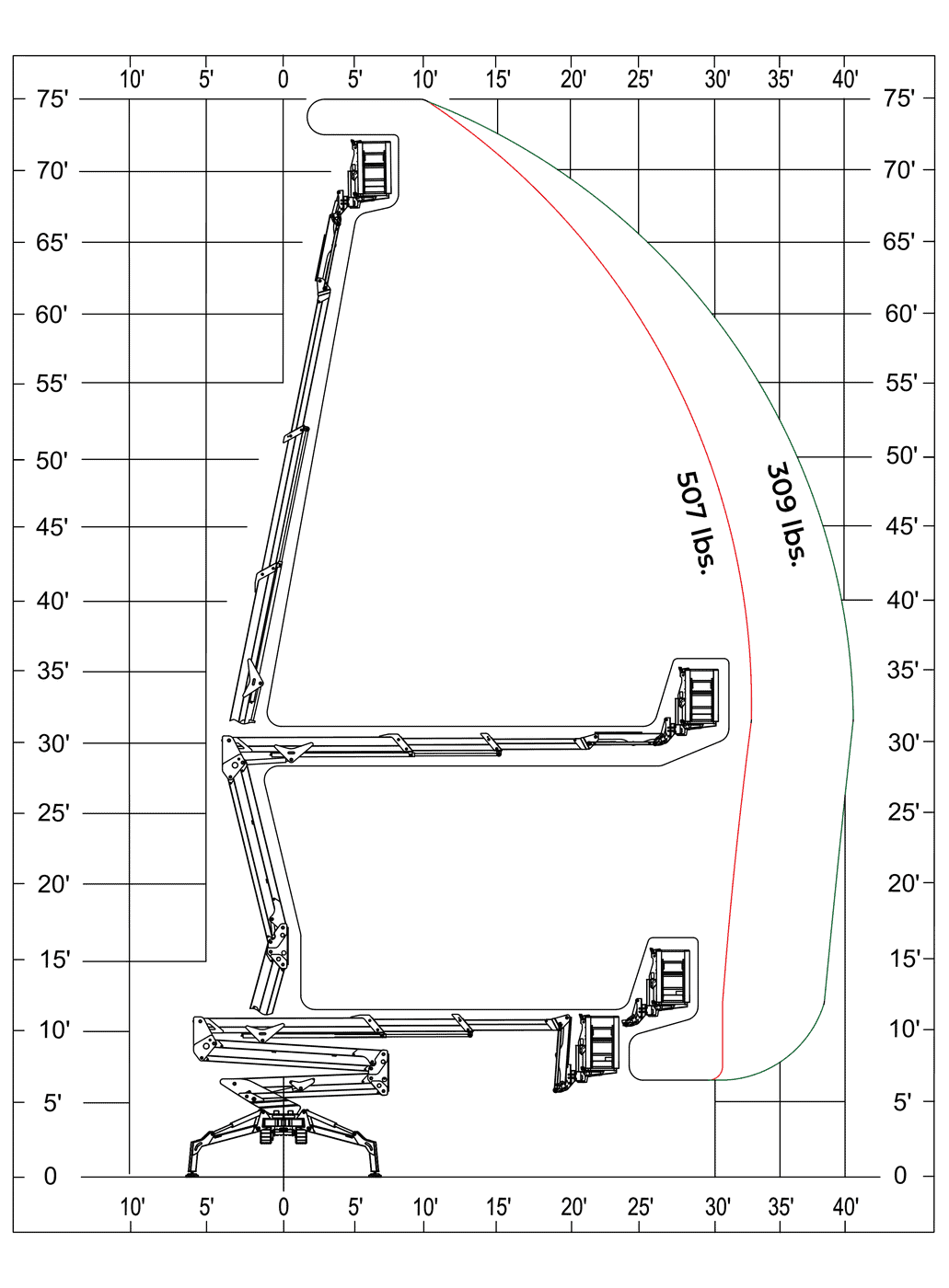

Click to enlargeReach Chart
Click to enlargeCompare Models
Side by side with the IM R 74 / 23 DA ProDownloads
Frequently Asked Questions
It needs a double door or an overhead door: the tracks retract to 3' 3" (39") and the stowed height is 6' 6". Transport length is 18' 9", or 16' 3" with the basket removed.
The outriggers can be set to a narrow 16' x 8' 10" footprint for alleys and tight setups, or the full 12' 1" x 12' 10" footprint for maximum reach. In the narrow setting the machine still delivers 23' 11" of outreach at 507 lb.
Gas (Honda iGX800) or diesel (Kubota D902), each with a 120 V electric motor for indoor use, or lithium (48 V / 210 Ah with a 13 hp AC motor). Total weight is 6,592 to 6,614 lb depending on the version.
