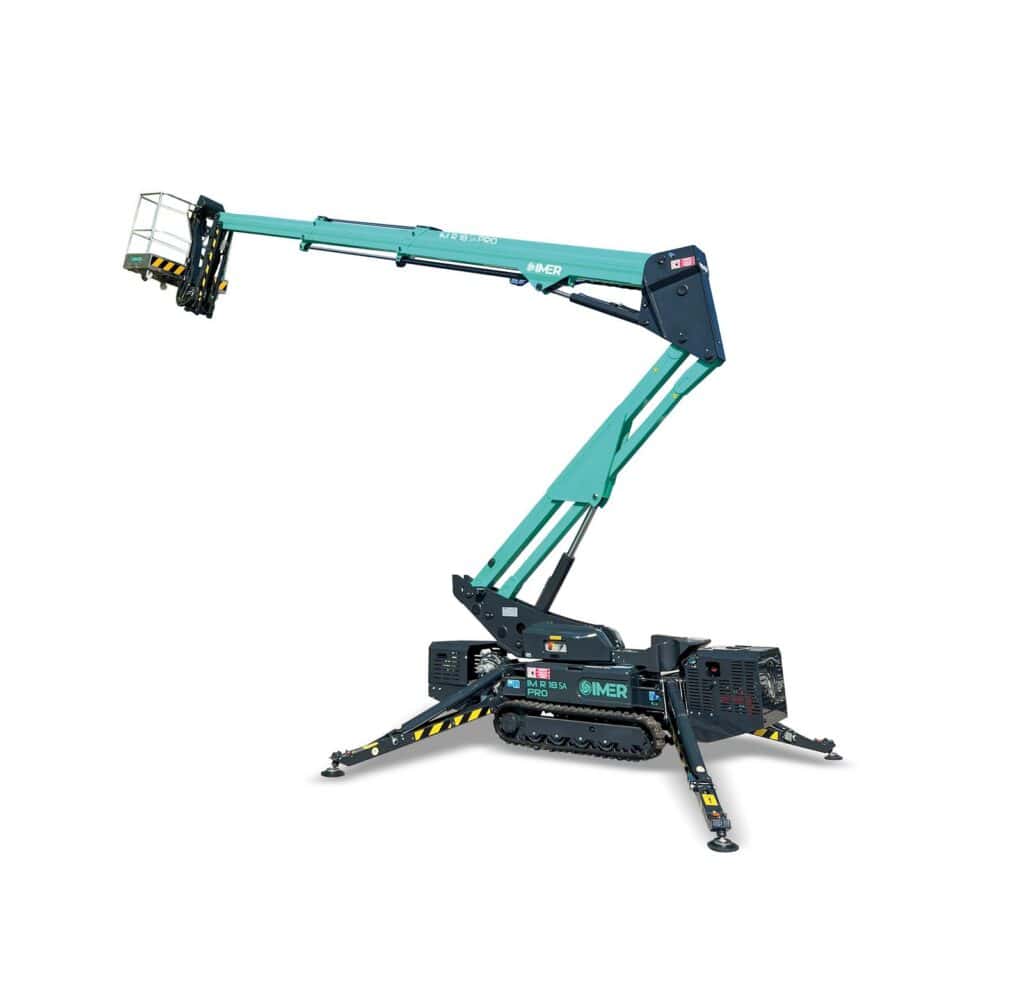

1 / 757' working height · 507 lb platform capacity

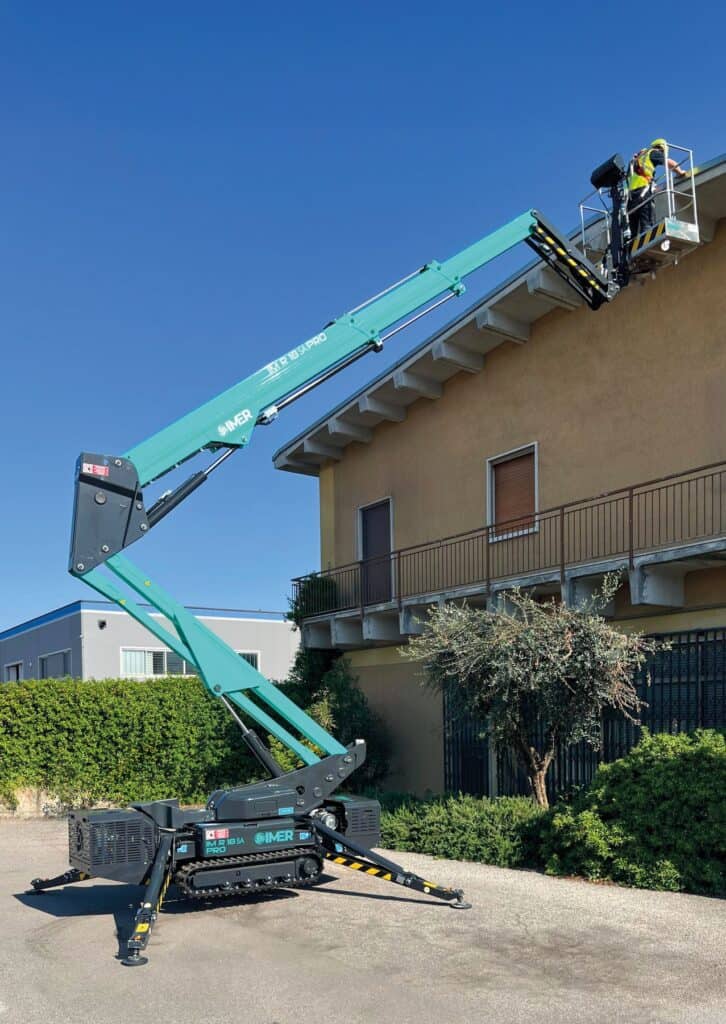

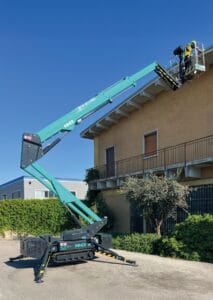

The IMER IM R 57 / 18 SA Pro is built for reach: a 57 foot working height and up to 36' 1" of side outreach from a single articulated boom, on a tracked chassis with a 31" transport width. The articulated riser lifts the boom over parapets and roof edges with 19' 8" of up and over, and the 507 lb platform carries two workers with tools. Auto-leveling outriggers set up fast on uneven ground, and gas, diesel, lithium or hybrid power covers indoor and outdoor jobsites with one machine.

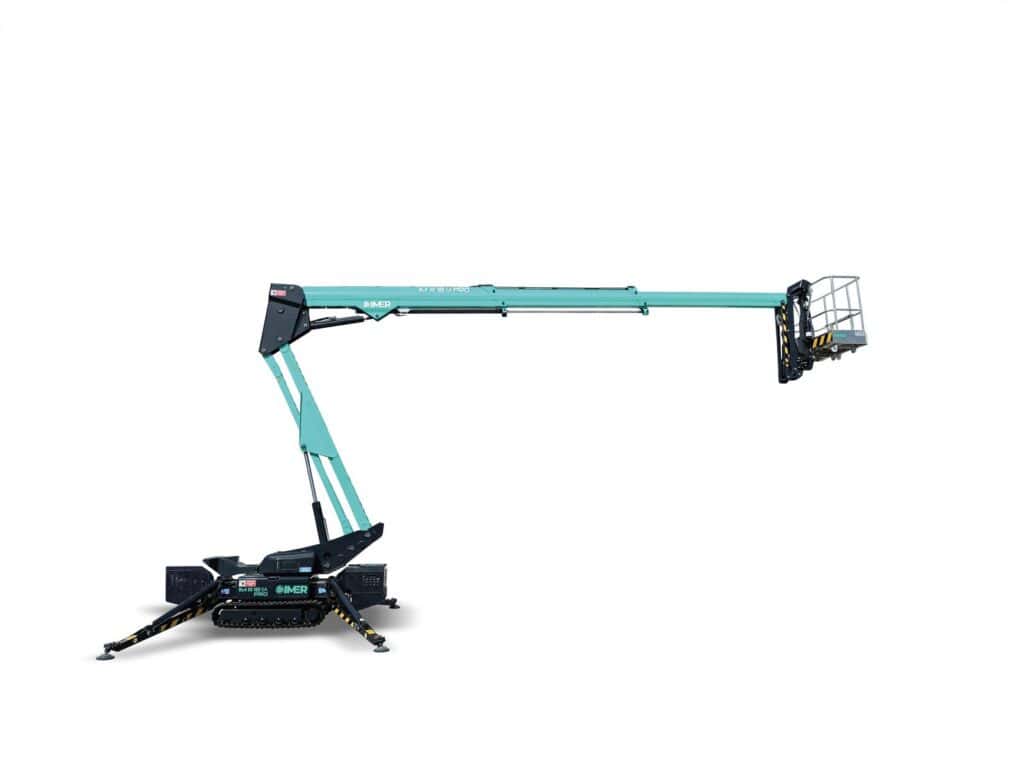

- 36' 1" side outreach at 198 lb, 33' 2" at 309 lb and 27' 11" at the full 507 lb capacity
- 19' 8" up-and-over clearance from the single articulated boom

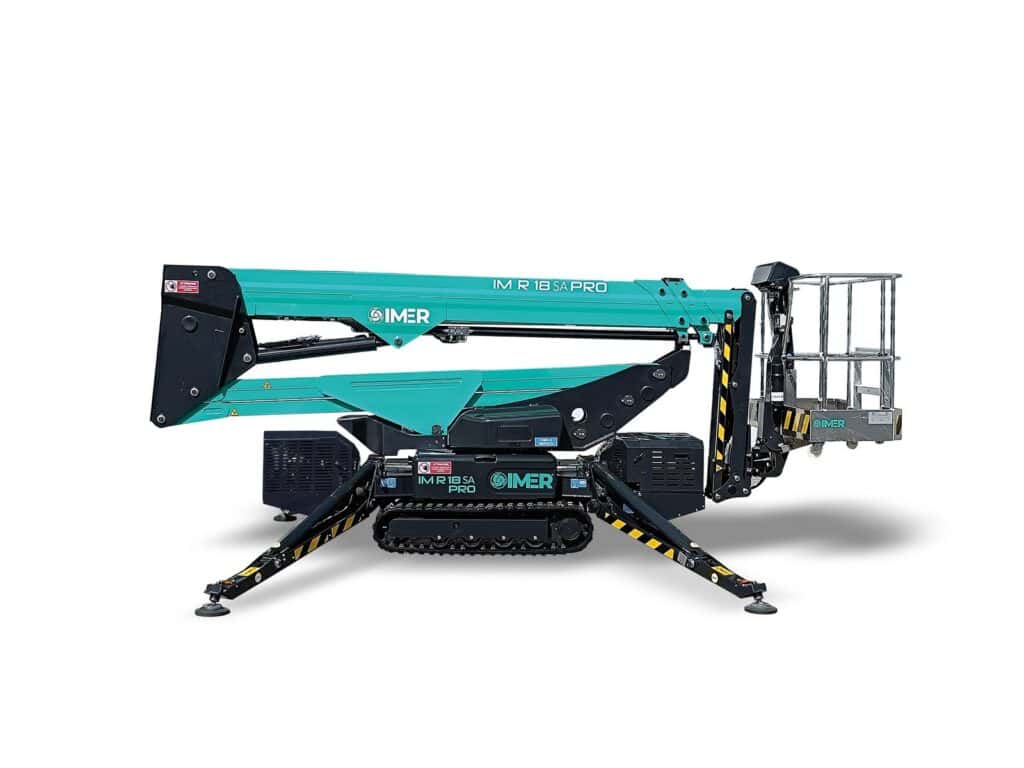

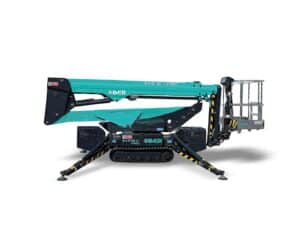

- 31" transport width on hydraulically adjustable tracks; 6' 7" stowed height
- 6,305 lb total weight on the gas unit for trailer transport
- Gas, diesel, lithium or hybrid power, with a 120 V electric motor for indoor work on gas and diesel units
- Enhanced wireless controller with 4.3” color screen
- Return-to-home button
- Two-man basket
- Foot pedal activation switch
- Auto-leveling outriggers
- Double traction speed
- Electric emergency pump
- 124° basket rotation
- 360° non-continuous turret rotation
- Adjustable track width
- Air & water hookups in the basket
- 120 V / 16 A outlet in the platform
- 120 V electric pump for machine use on 120 V wall power
Applications

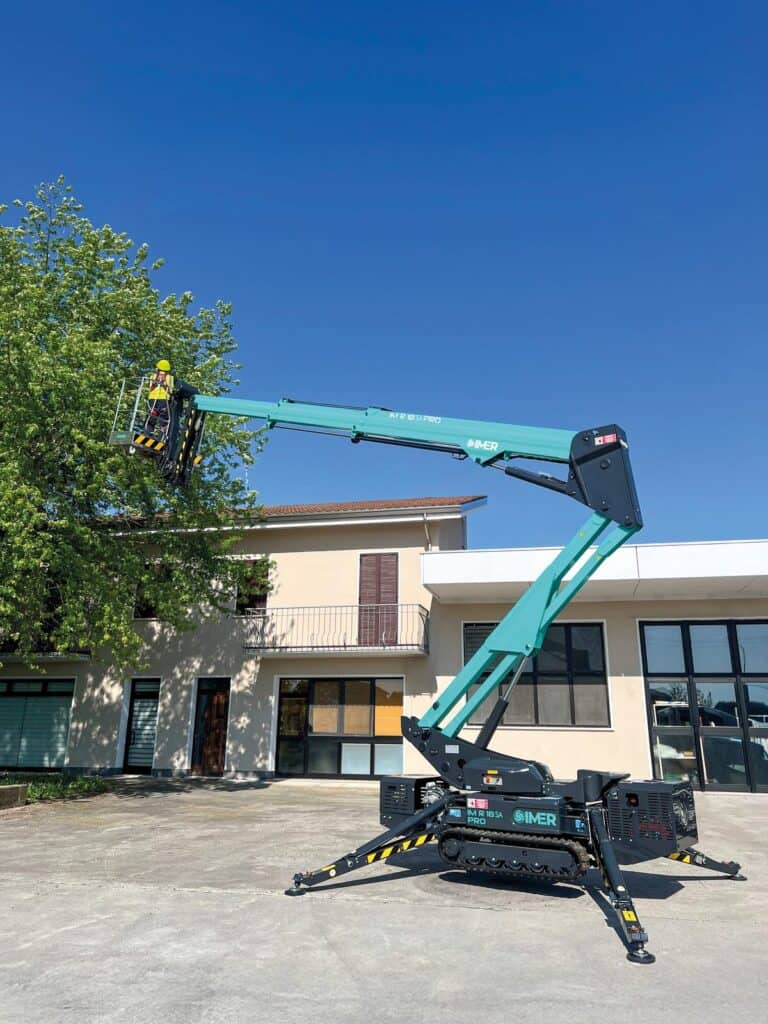

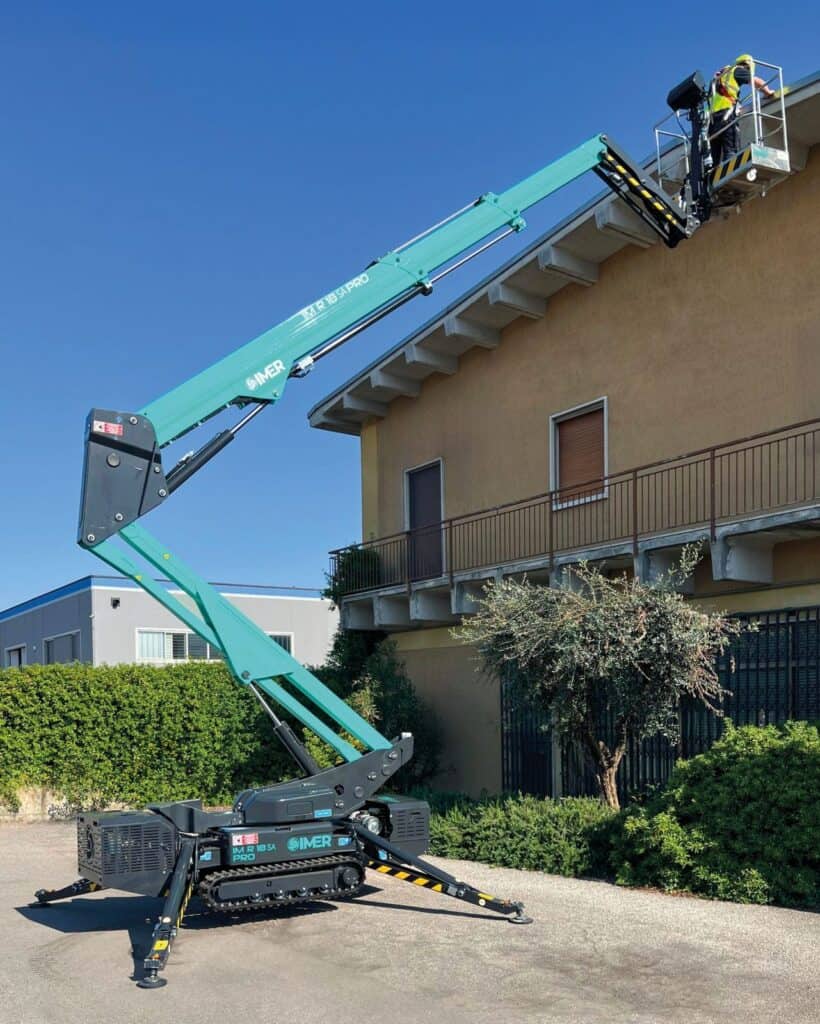

With the longest side outreach in its weight class, the IM R 57 / 18 SA Pro is a spider lift for facade work, glazing, painting and tree work where the machine has to stay back from the work: over landscaping, water features, delicate floors or a setback. Indoors it works as an atrium lift for ceilings, lighting and HVAC on finished surfaces. Available through IMER dealers across the US.
Specifications
US units · tap a section to expand| Specification | Gas / Diesel | Lithium | Hybrid |
|---|---|---|---|
| Working height | 57' | ||
| Platform height | 51' | ||
| Max side outreach | 36' 1" / 198 lbs. | ||
| Side outreach @ 507 lbs. | 27' 11" | ||
| Side outreach @ 309 lbs. | 33' 2" | ||
| Side outreach @ 198 lbs. | 36' 1" | ||
| Up & Over | 19' 8" | ||
| Max load capacity | 507 lbs. | ||
| Turret rotation | 360° (not continuous) | ||
| Basket rotation | 124° | ||
| Basket dimensions | 4' 11" x 2' 4" x 3' 7" | ||
| Outrigger footprint - standard | 10' 5" x 10' 7" | ||
| Transport length (without basket) | 17' 8" (15' 6") | ||
| Transport width (w/ tracks extended) | 2' 7" (3' 7") | ||
| Stowed height (w/ outrigger pads) | 6' 7" (6' 8") | ||
| Total machine weight | Gas 6,305 lbs. / Diesel 6,437 lbs. | 6,460 lbs. | 6,482 lbs. |
| Driving speed | 1.2 mph | 1.1 mph | 1.1 mph |
| Gradeability | 30% | ||
| Electric motor | 120 V 1.5 hp | 48V 6 hp | 48V 6 hp |
| Gas engine | Honda GX390 - 13 hp | — | — |
| Diesel engine | Kubota Z602 - 17 hp | — | — |
| Lithium batteries | — | 48V / 110 Ah | 48V / 110 Ah |
| Lithium battery charger | — | 48V / 50 A | 48V / 50 A |
| Gas generator | — | — | Honda GX160 - 5 hp |
| Current supplied by generator | — | — | 10 A |

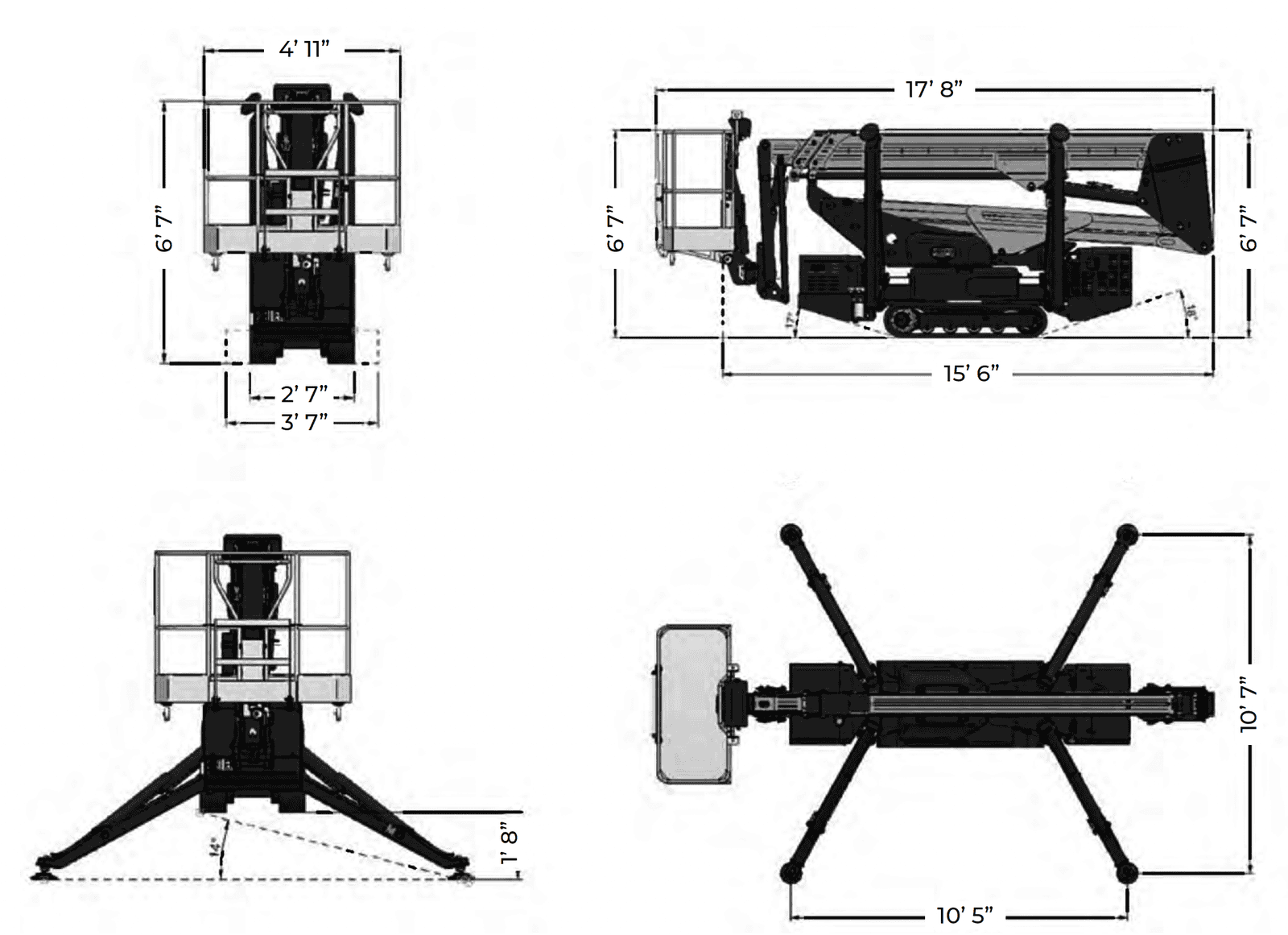

Dimensions

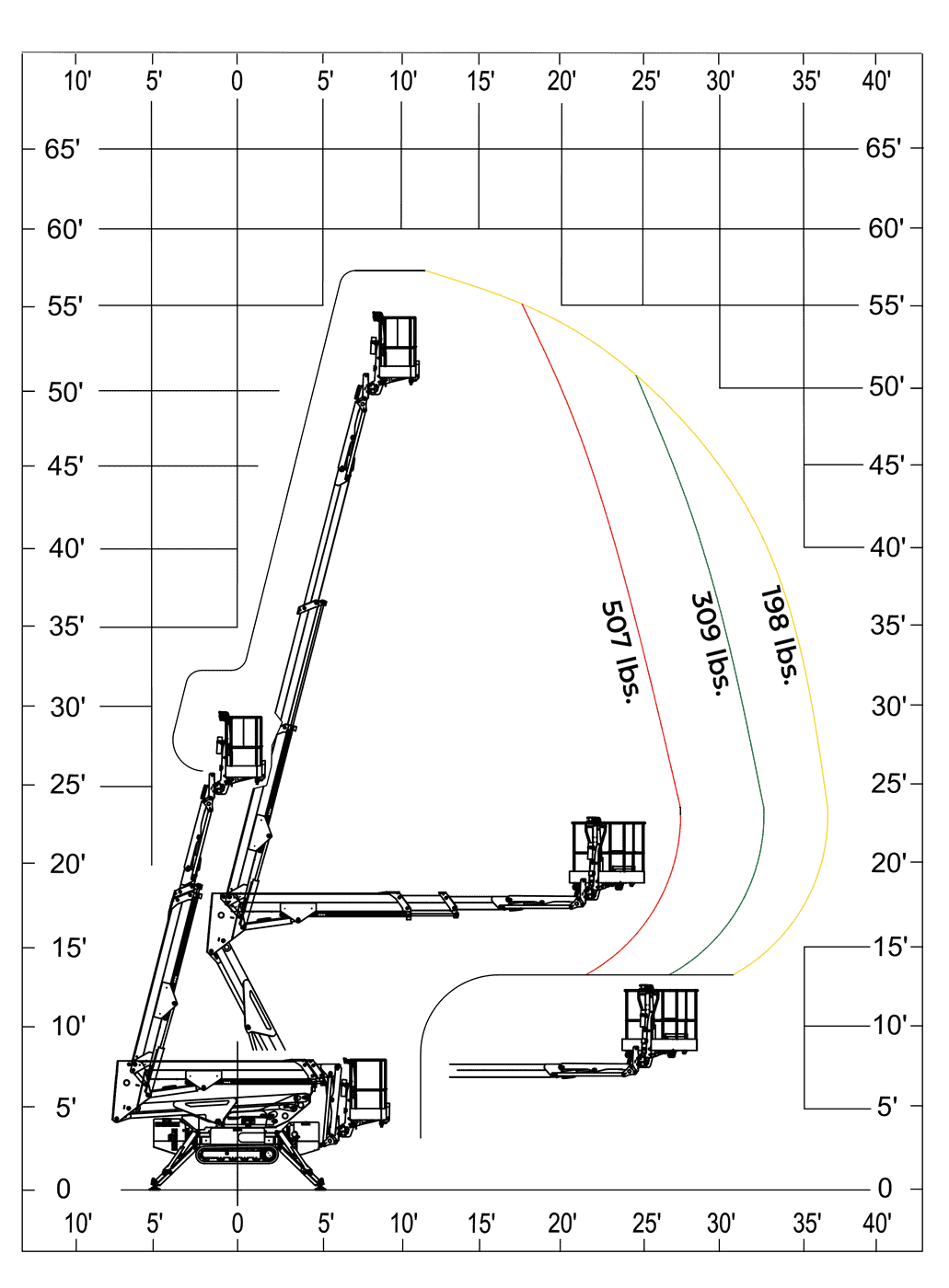

Click to enlargeReach Chart
Click to enlargeCompare Models
Side by side with the IM R 57 / 18 SA ProDownloads
Frequently Asked Questions
Yes. The tracks retract to 2' 7" (31") and the stowed height is 6' 7", so it passes a standard 36" door and most freight elevators.
Up to 36' 1" at 198 lb, 33' 2" at 309 lb and 27' 11" at the full 507 lb platform capacity, with 19' 8" of up-and-over clearance.
Gas (Honda GX390) or diesel (Kubota Z602), each with a 120 V electric motor for indoor use; lithium (48 V / 110 Ah); or hybrid (lithium with a Honda GX160 generator). Total weight is 6,305 to 6,482 lb depending on the version.
