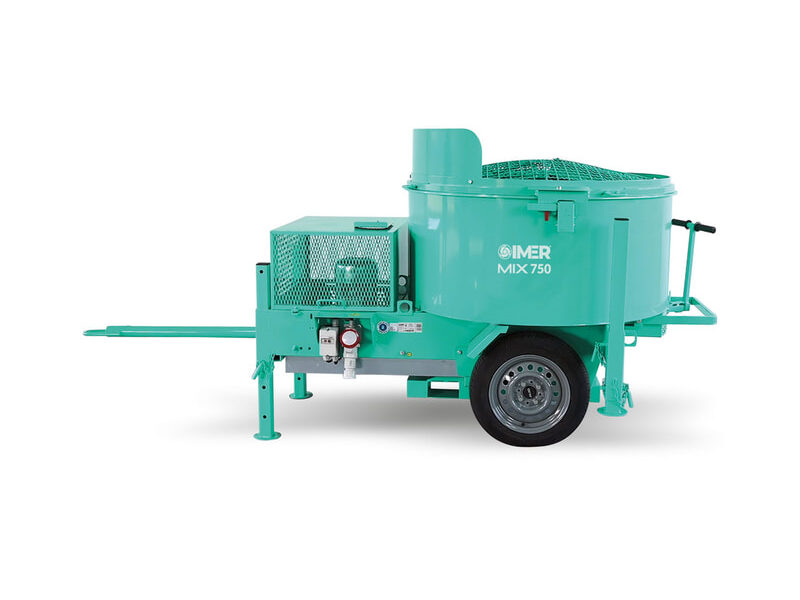

PRODUCE 18 CUBIC FEET OF MUD EVERY THREE TO FOUR MINUTES WITH THE MIX 750 The Mix 750 is the perfect partner for busy precast mixing operations, and on bridge and highway jobs. The discharge system is easy to open and close and protected from being hit by a mud bucket or forklift. The safety grate is hinged, making access immediate. The Mix 750 is Mini-Batch Plant production for a fraction of the cost. These mixers develop vast amounts of mixing power, far more than any horizontal shaft mortar mixer. The ability to mix refractory mud or stiff, dry materials is unparalleled in the industry.
| Model # | 1194644 |
| Model # - 208V Three Phase 7.5 HP | 1194645 |
| Model # - 480V Three Phase 7.5 HP | 1194646 |
| Model # - 13 HP Honda GXV 390 | 1194648 |
| Model # - No Motor | 1194640 |
| Drum Capacity | 22 cu ft |
| Batch Output | 18 cu ft |
| Drum Diameter | 52 in |
| Max. Aggregate Size | 3/8 in |
| Discharge Height - Max / Min | 29 in / 23 in |
| Wheels | 22 in |
| Weight | 1,588 lbs |
| Width | 63 in |
| Length | 90 in |
| Height | 62 in |
